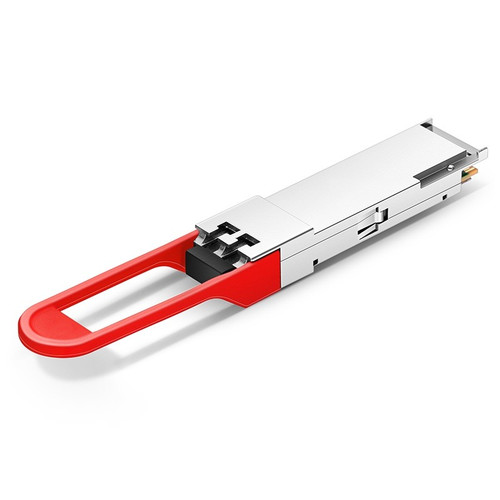

Edgecore Compatible ET7402-ER4 100GBASE-ER4 QSFP28 Transceiver

Edgecore Compatible ET7402-ER4 100GBASE-ER4 SMF Duplex LC 40km QSFP28 Transceiver

Part Number: ET7402-ER4-HPC

Specifications:

• 100% Edgecore Compatible
• QSFP28 Transceiver Module
• 100GBASE-ER4 100G Ethernet
• 103Gb/s aggregate data rate
• 25Gb/s data rate per channel (4x25Gb/s)
• 4 CWDM Lanes MUX/DEMUX design: 1290~1310nm Wavelength
• APD and TIA array on the Receiver Side
• Compliant with 100G Datacom and Telecom Interconnects
• Duplex LC Connector
• Up to 40km reach with FEC over Singlemode Fiber (SMF)
• Power Dissipation < 5W
• Single +3.3V Power Supply
• RoHS Compliant
• I2C Interface with Digital Diagnostics (DDM)
