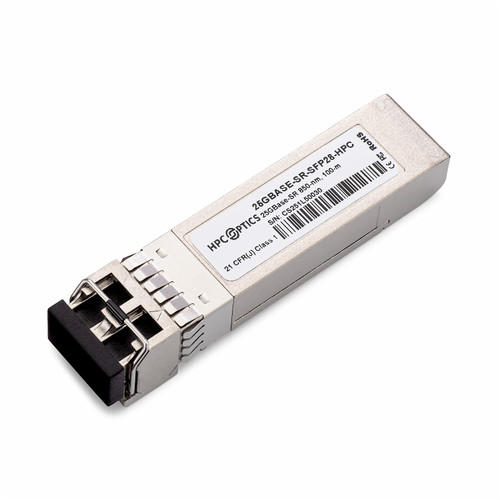

Avago Compatible AFBR-725SMZ 25GBASE-SR SFP28 Transceiver

Avago Compatible AFBR-725SMZ 25Gb/s SR Multi Mode 100m 850nm SFP28 Optical Transceiver

Part Number: AFBR-725SMZ-HPC

Specifications:

• 100% Avago Compatible
• Hot-pluggable SFP28 transceiver module
• 25GBASE-SR 25G Ethernet
• 25.78 Gbps bi-directional data links
• Up to 100m over OM4 Multimode Fiber (MMF)
• Up to 70m over OM3 Multimode Fiber (MMF)
• 850nm VCSEL laser and PIN photo-detector
• Power dissipation < 1W
• Metal enclosure, for lower EMI
• Single 3.3V power supply
• Duplex LC connector
• 2-wire interface with integrated Digital Diagnostic monitoring
• Commercial operating temperature range: 0°C to 70°C
